Choose a profile

Your details

We'll only use these to contact you about this quote — and so we can follow up if you get interrupted.

Site / installation address

We use this address to suggest your AS 4055 wind region. You can still change the region manually later.

Choose a profile

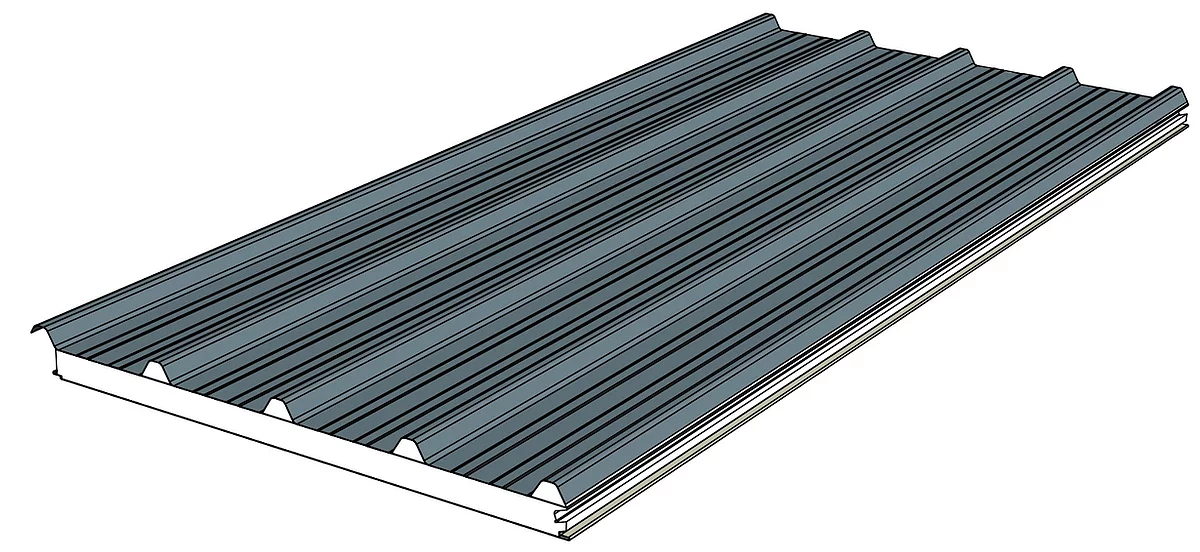

Insulated Trim Roof

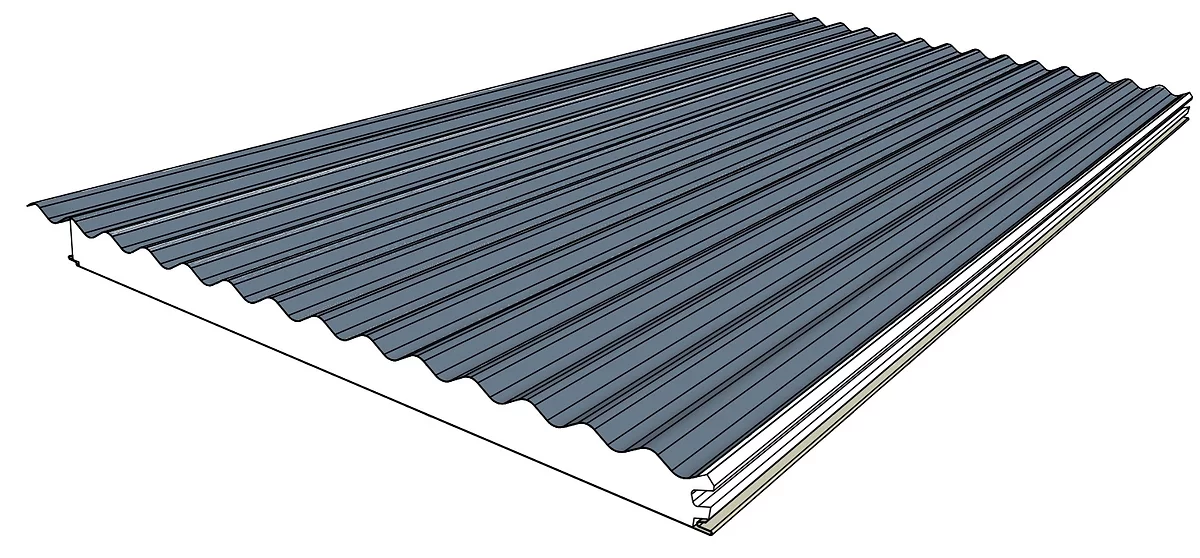

Insulated Orb Roof

What type of roofing system?

Free Standing

Attached

Flyover

Other

How would you like to give us your roof size?

Choose the option that suits your project best.

What are the dimensions of the roof system?

Roof Cover

Provide the measurements of the total roof cover in metres using dimensions A and B as shown below.

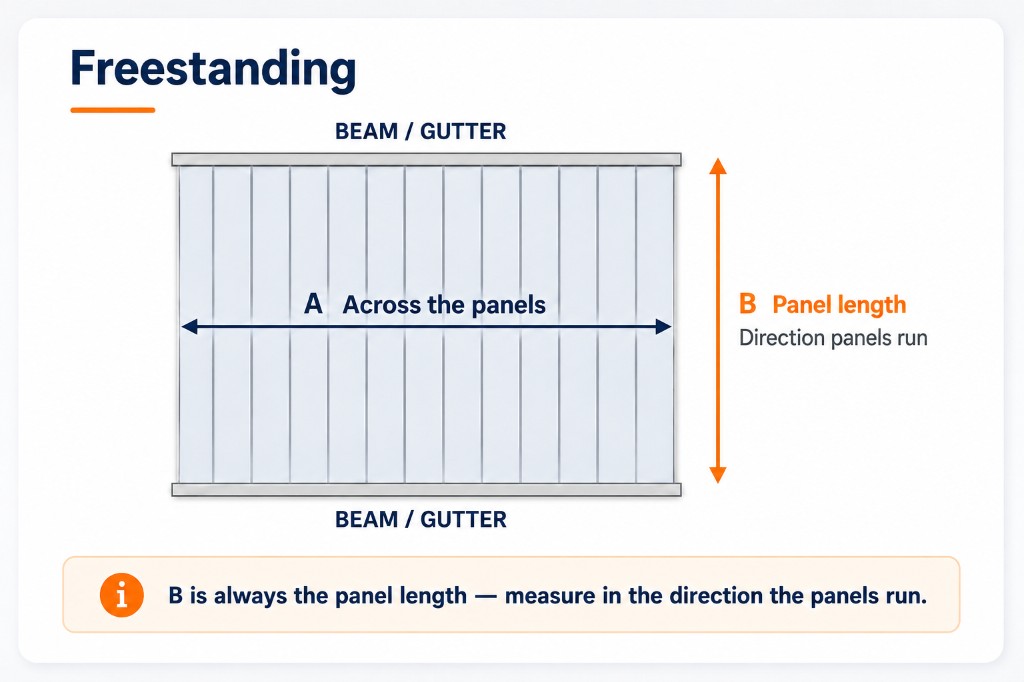

Freestanding roof dimensions: A across the panels, B panel length

A Across the panels (m) Measure across the panels.

B Panel length (m) Measure in the panel direction.

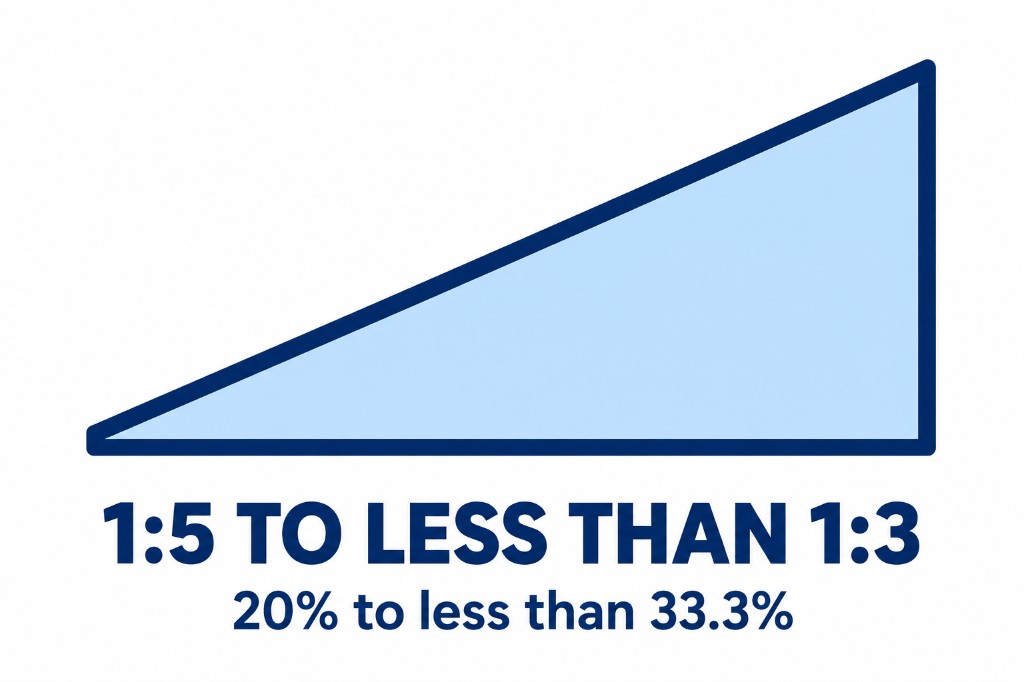

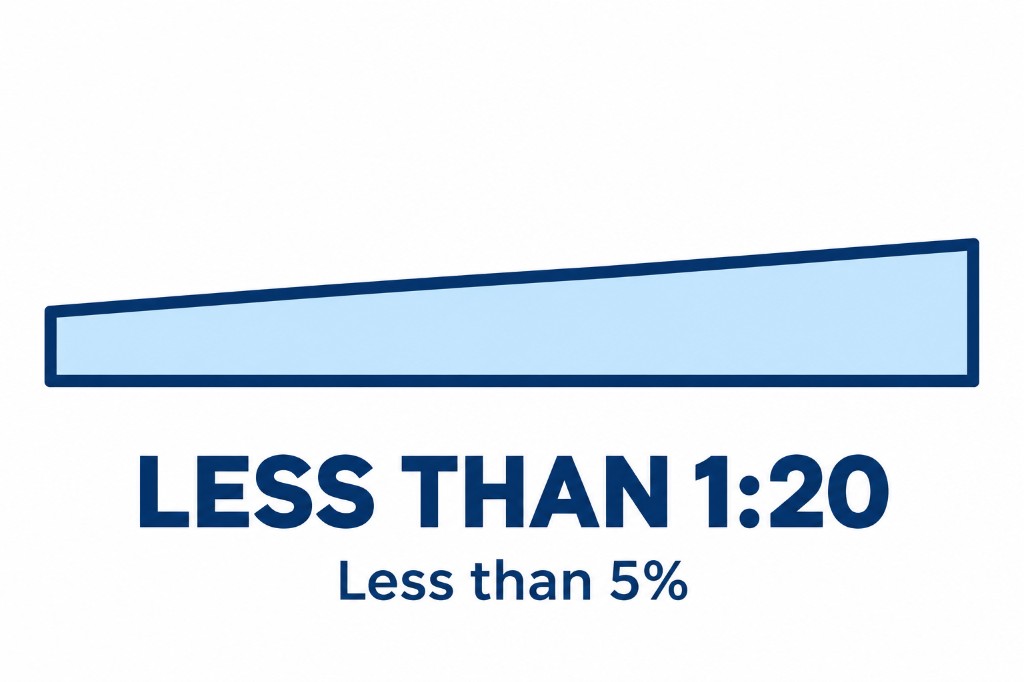

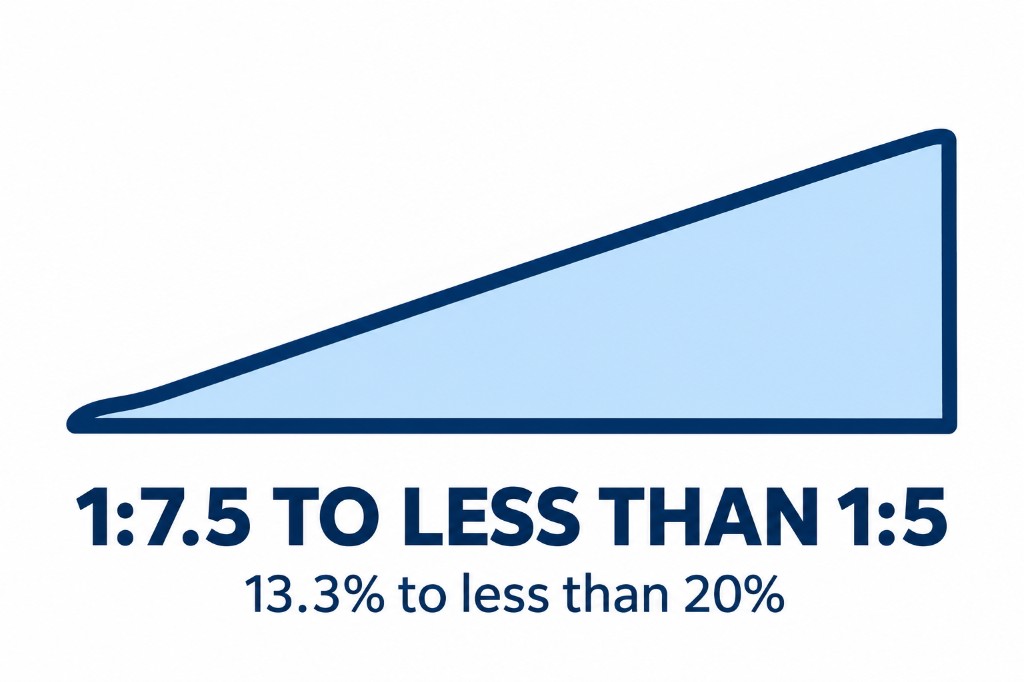

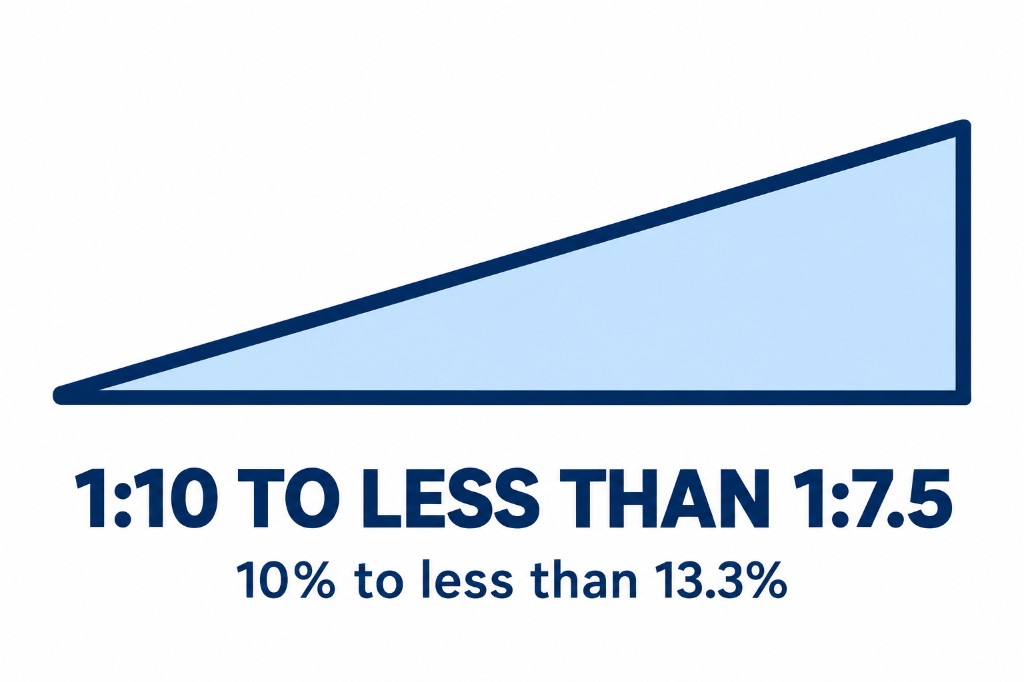

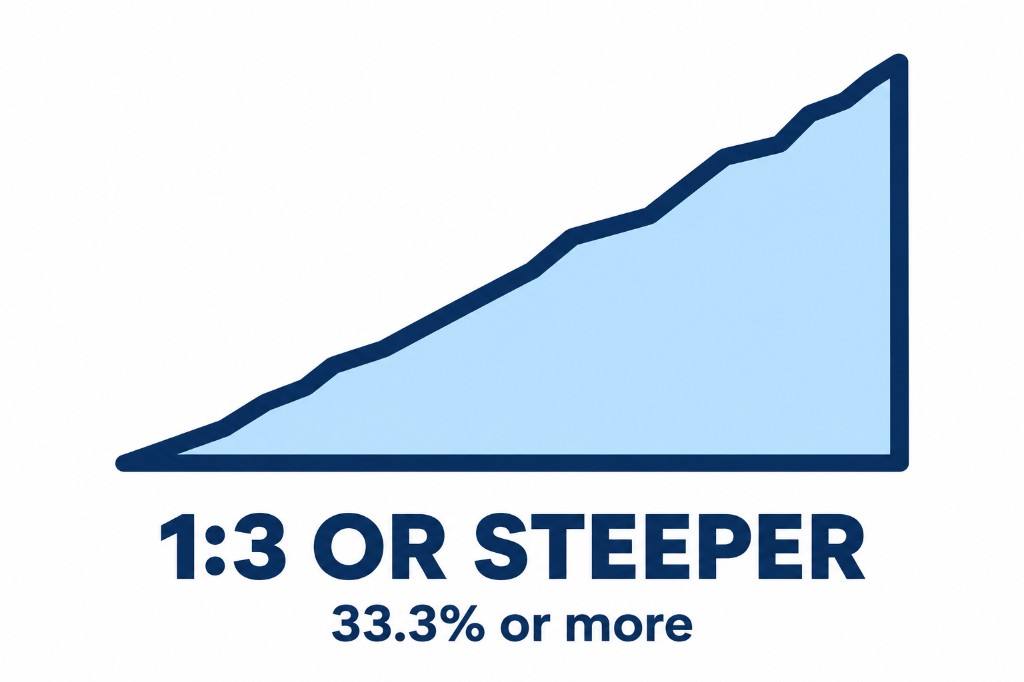

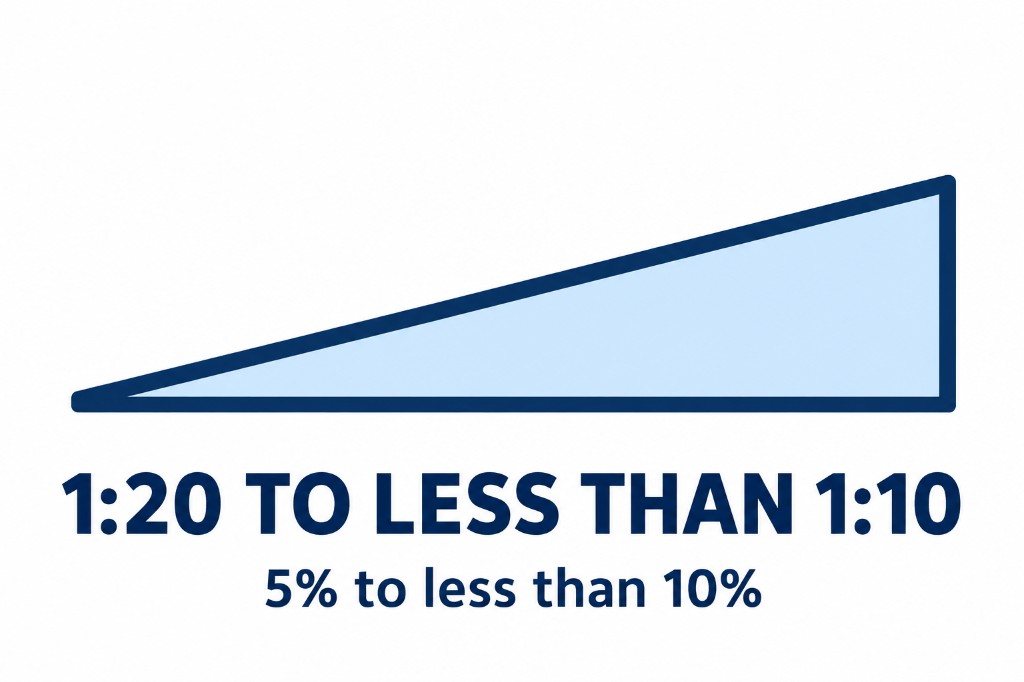

Roof slope (%)

Typical patio fall is about 2%. Adjust if your design differs.

Finished roof height — underside, low side (m)

Measure from ground level to the underside of the roof on the low side of the fall.

How far do you want the panels to overhang the beams? (mm)

Typical overhang is 300mm. Adjust if your design differs.

Upload your plans

Upload photos or PDFs of the dimensions / layout. You can upload multiple files.

Plans, sketches, or photos

Choose your colours

Panels, beams, posts, flashings and gutters use our UniCote colour range. Choose each finish separately below.

Roof Top Colour

Roof Bottom Colour

Beams colour

Posts colour

Flashings colour

Gutter colour

Do you need posts, beams, flashings, or other accessories?

We supply the full range of accessories required to complete your roofing system. This includes post, beams, flashings, gutters, screws, paint and more. See here for our full range.

Posts & Beams

We'll add metal beams and default to 100x100mm posts. Let us know if you need specific sizes or types.

Flashings

Covers the exposed sides of the panels.

Rainwater Gutter

By default we'll supply square however other styles are available on request.

Screws, rivets, silicone & touch up paint

We'll quote all the required fixings to put up your structure.

Down lights

We can also supply skylights or strip lighting.

Do you need installation?

Supply Only

Supply & Install

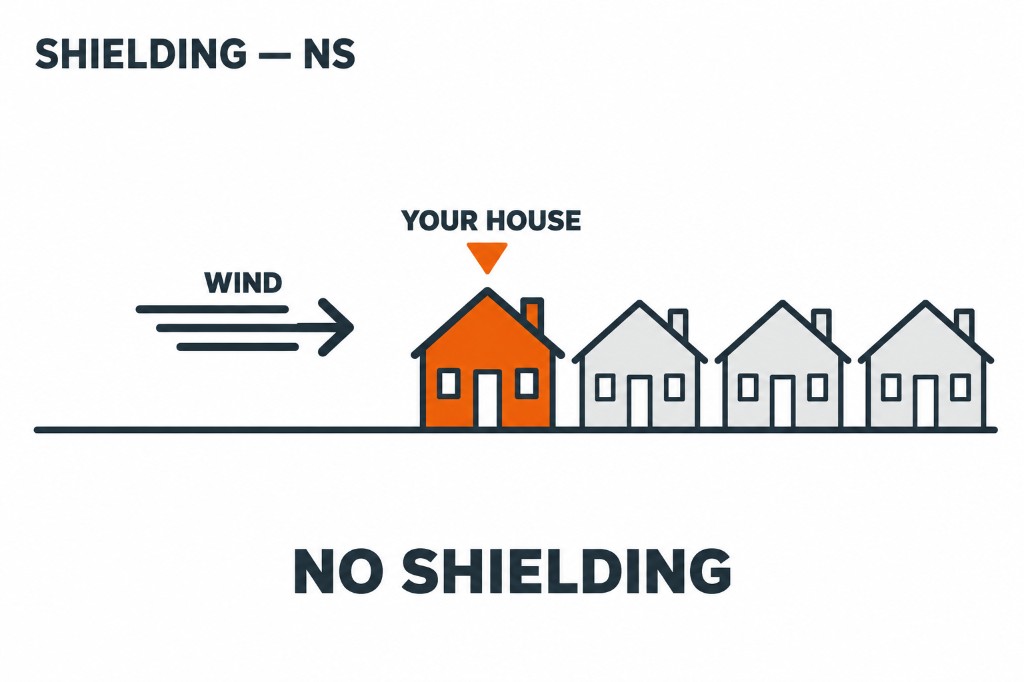

Site & engineering details

These details let us size panels, beams and posts from the Delta Module A engineering tables. If you are unsure, choose the closest option — we will list assumptions on your draft order.

Wind region (AS 4055)

Suggested from your site address using Geoscience Australia wind-region maps (indicative — Standards take precedence). You can still change it.

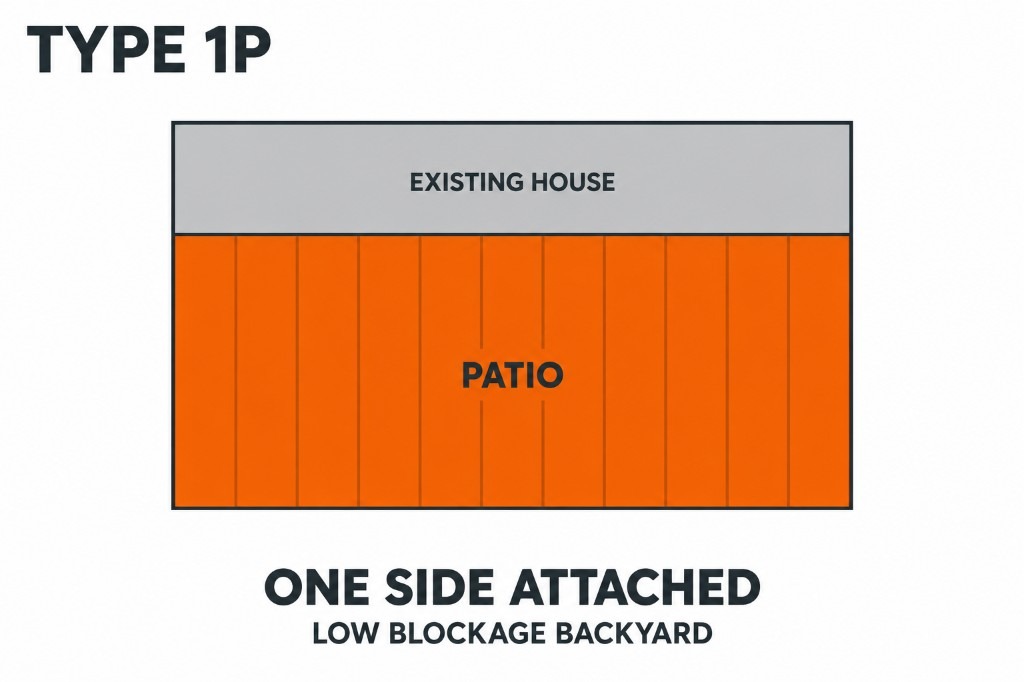

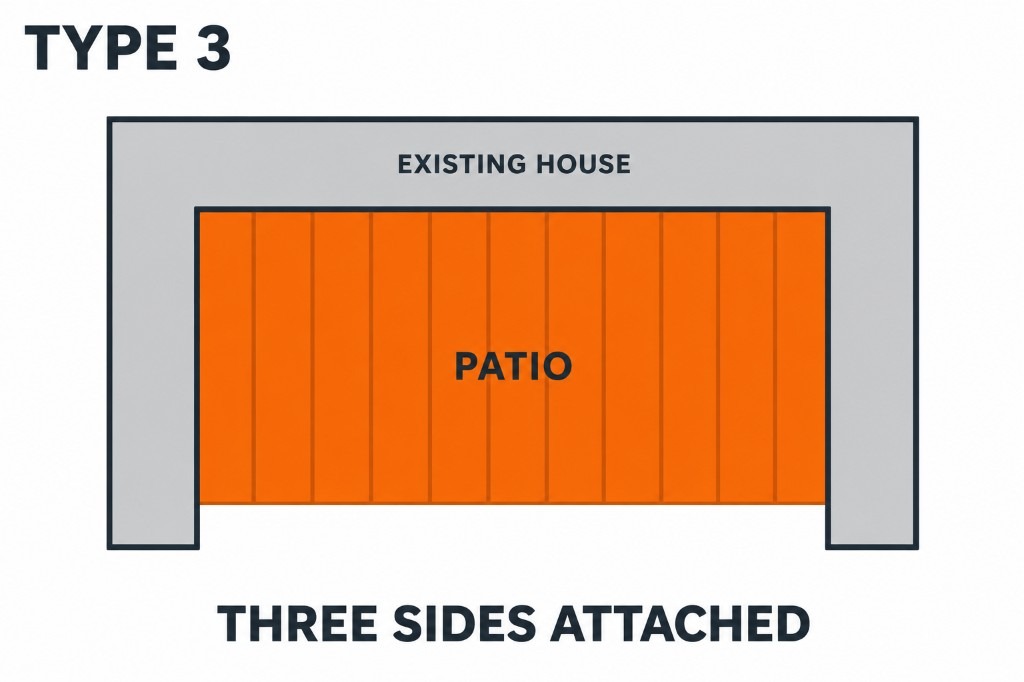

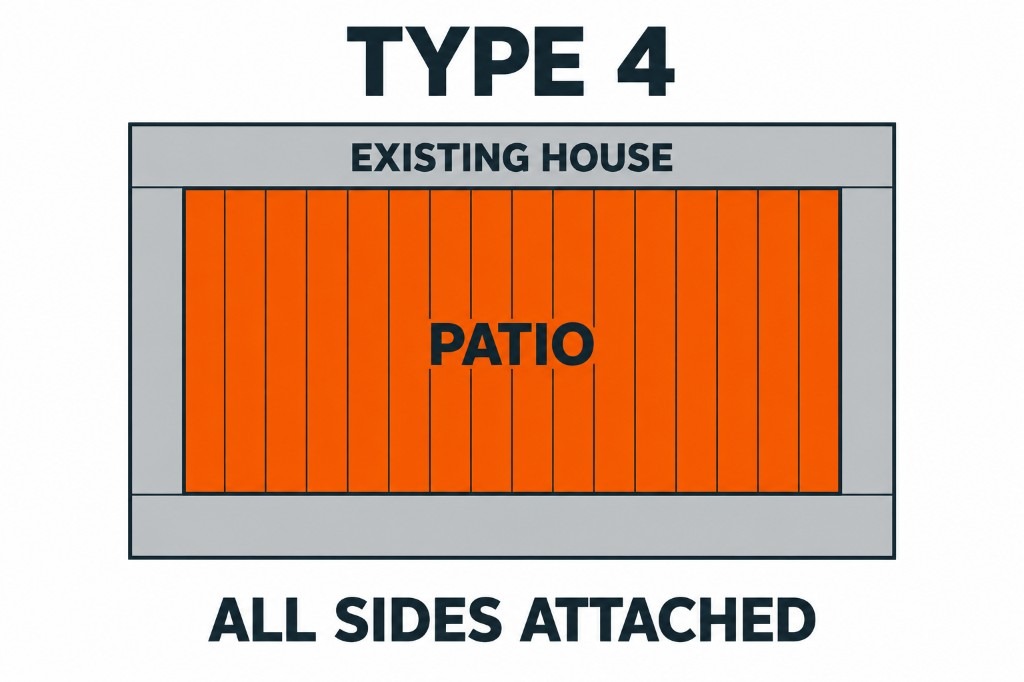

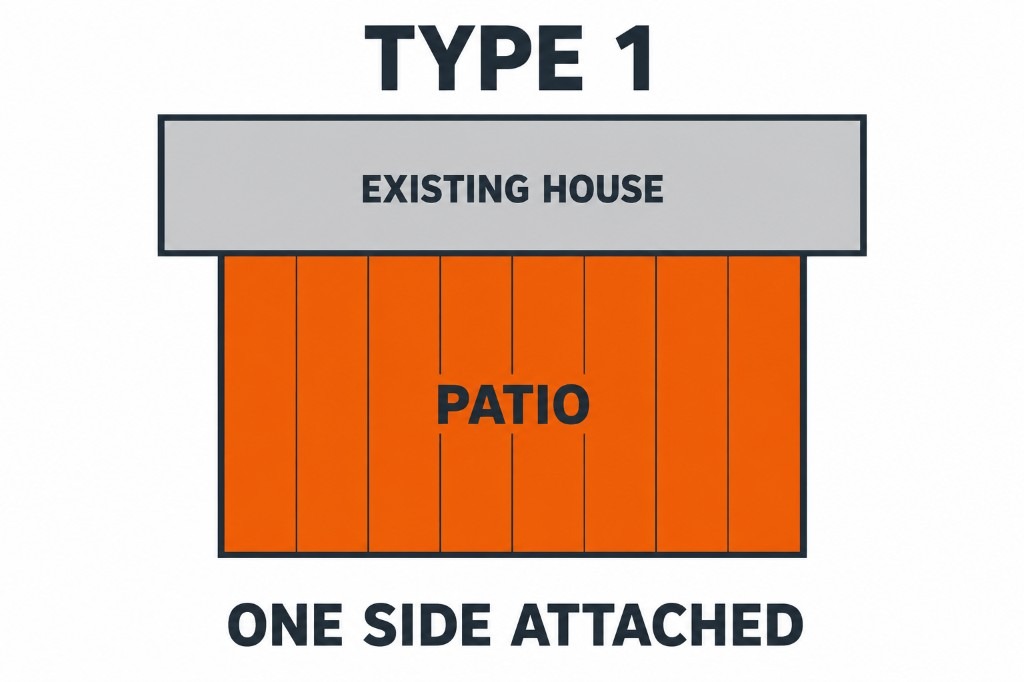

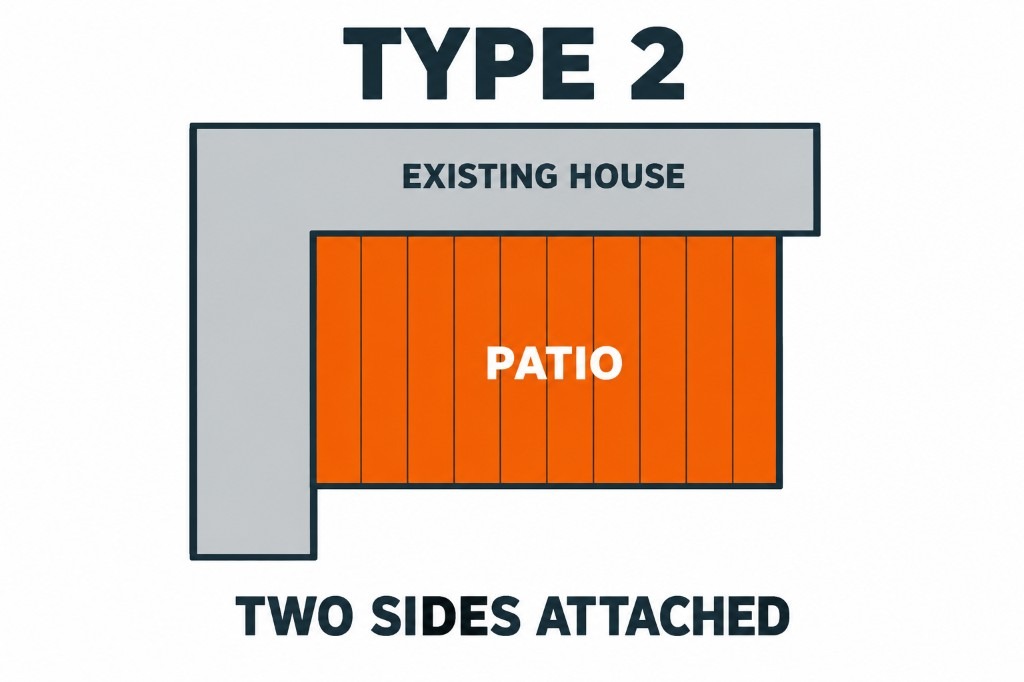

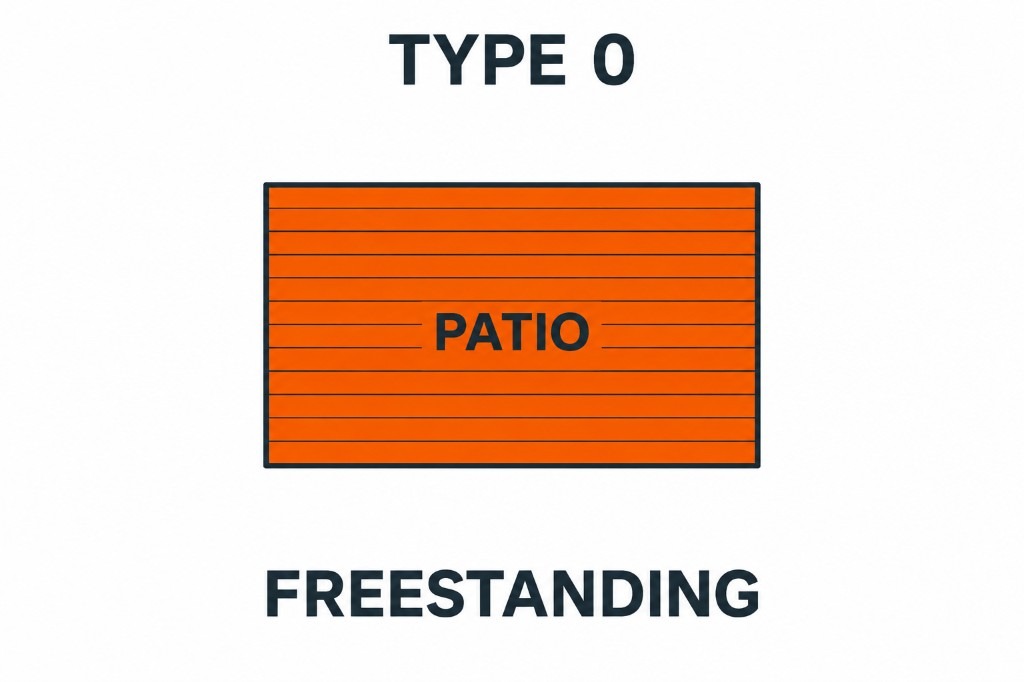

Patio type

How is the roof attached to the house? Select one, then continue.
